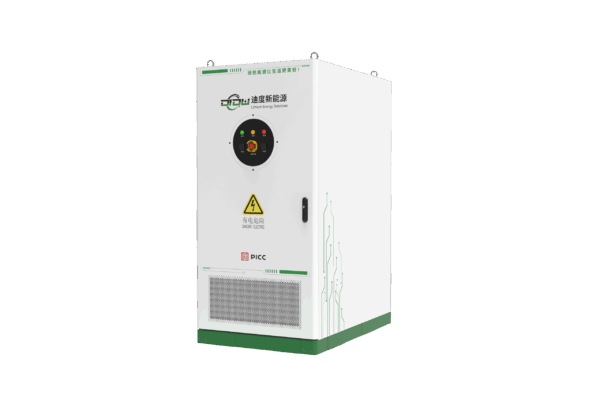

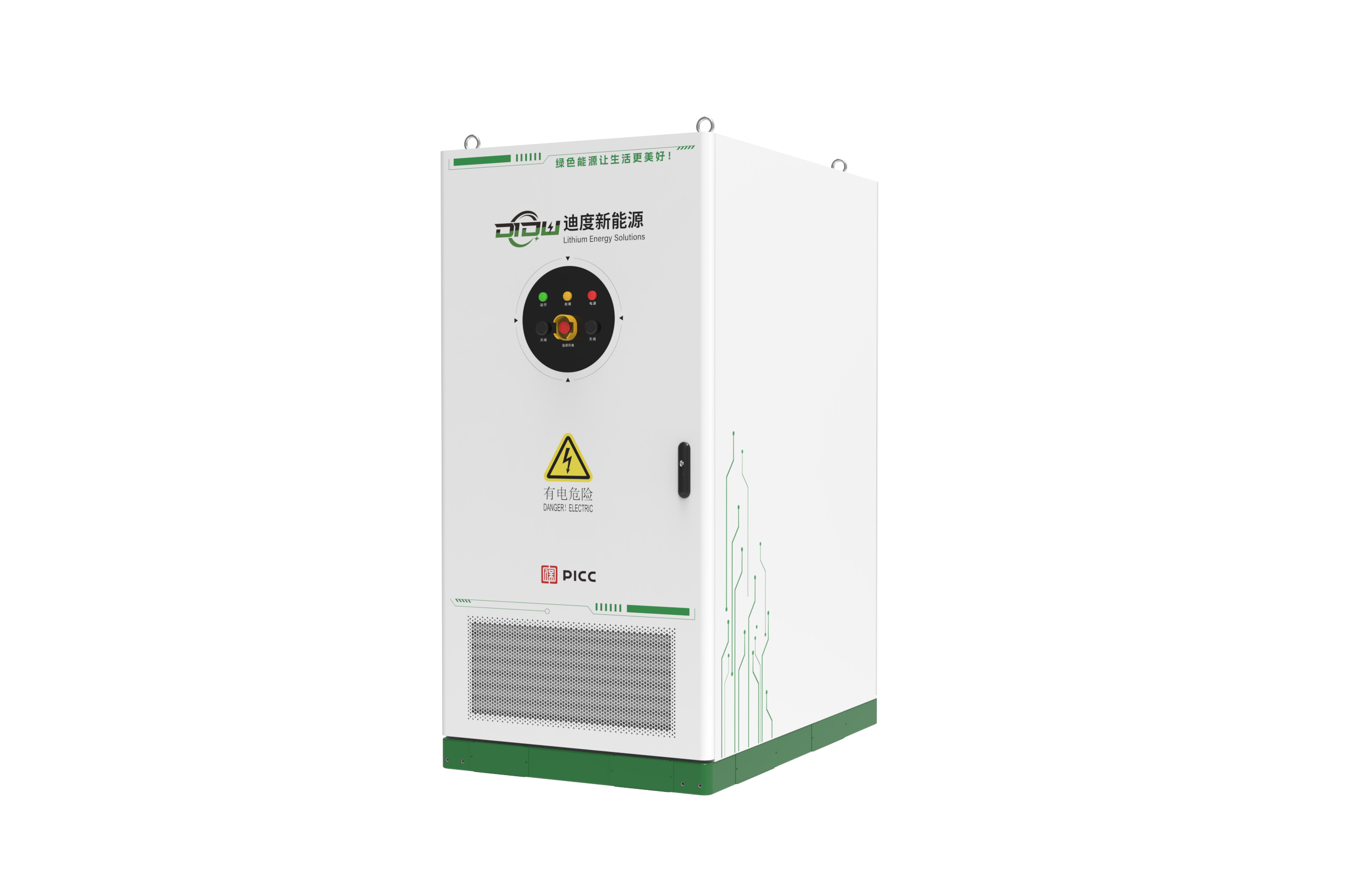

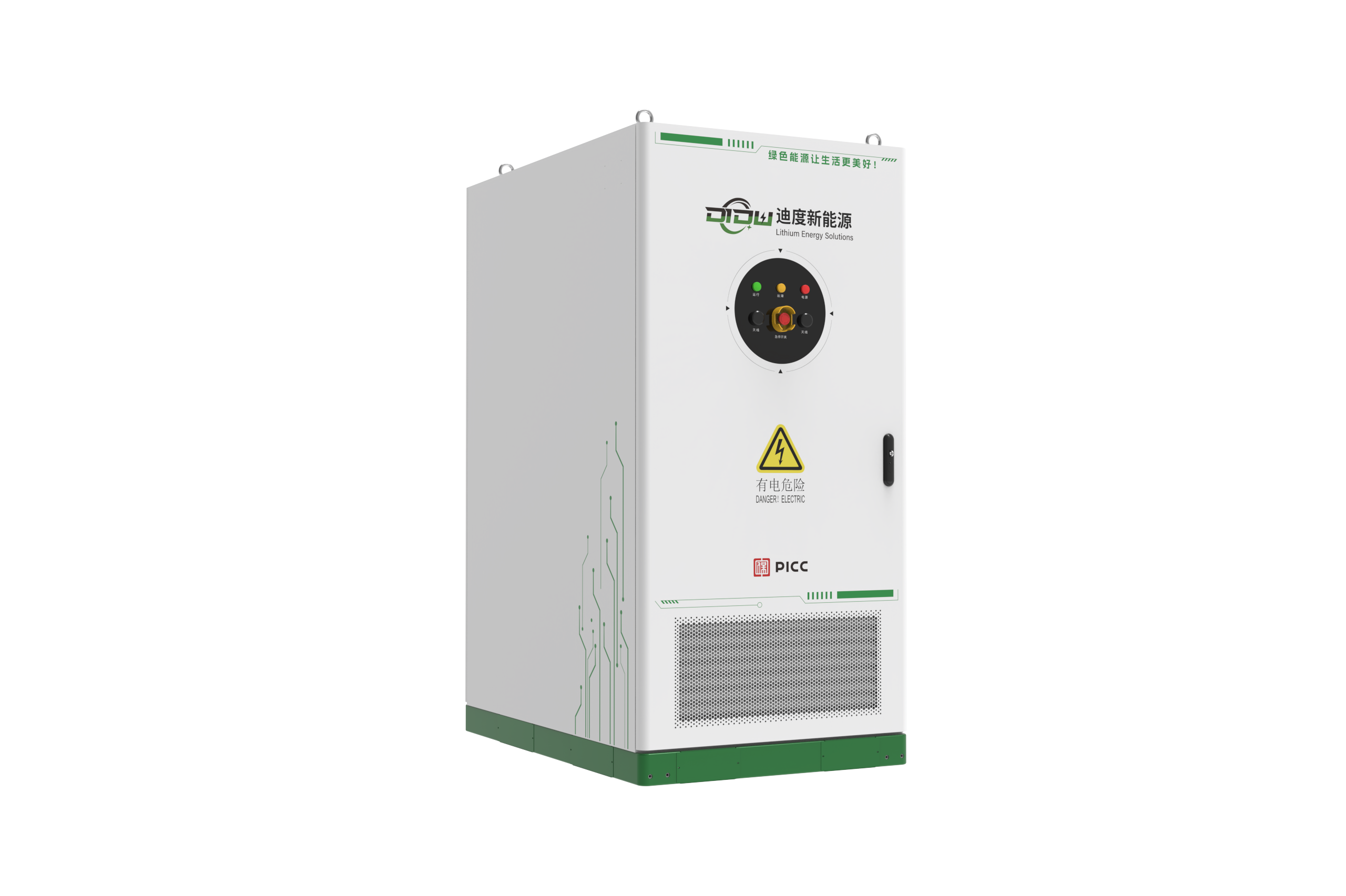

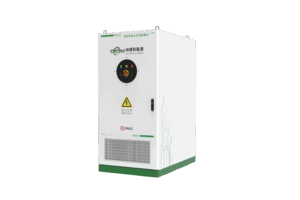

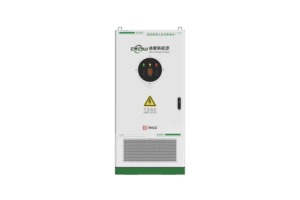

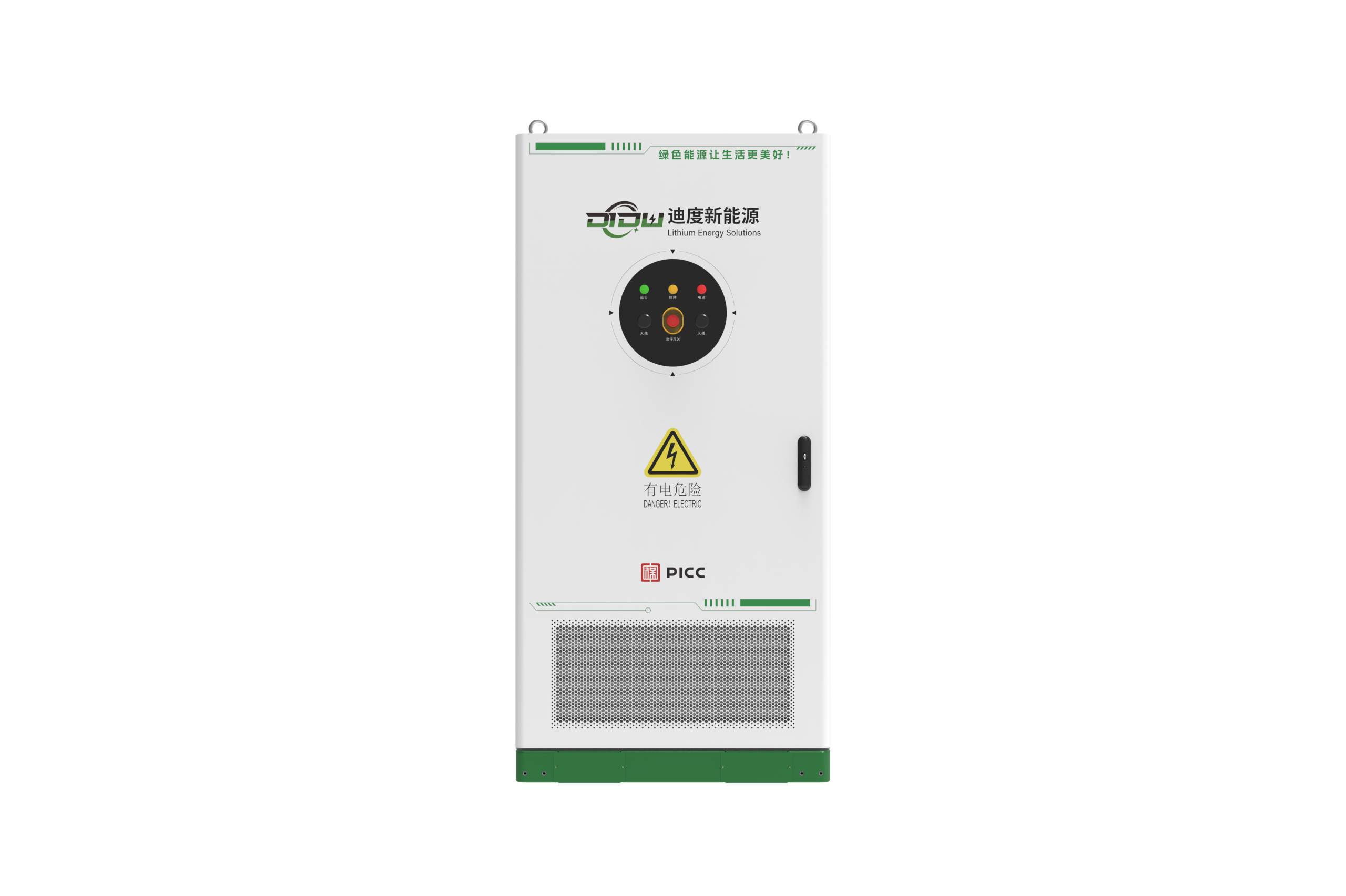

Outdoor Air-cooled On-grid ESS Cabinet Specification
Outdoor Air-cooled On-grid ESS Cabinet Specification
High-capacity Outdoor Air-cooled On-grid ESS Cabinet Specification. Built for residential and commercial energy needs.
- Energy cycle efficiency: ≧88%
- Protection class: IP54
- Corrosion Protection level: C3 default, C4/C5 optional
- Fire: Aerosol/perfluorohexanone (optional)
- Isolation mode: No isolation (optional transformer)
- Relative humidity: 0~95% (non-condensing)
- Ambient temperature: -30℃~55℃(derated above 45℃)
- Altitude: <3000m (derated over 2000m)
- BMS Communication: CAN2.0b
- EMS communication: 4G/CAN/RS485
- Size (W*D*H): 1310 * 995 * 2040mm
- Weight (approx.) : 2.4t
- Annual decay rate: <3%
- Warranty: 5 years
