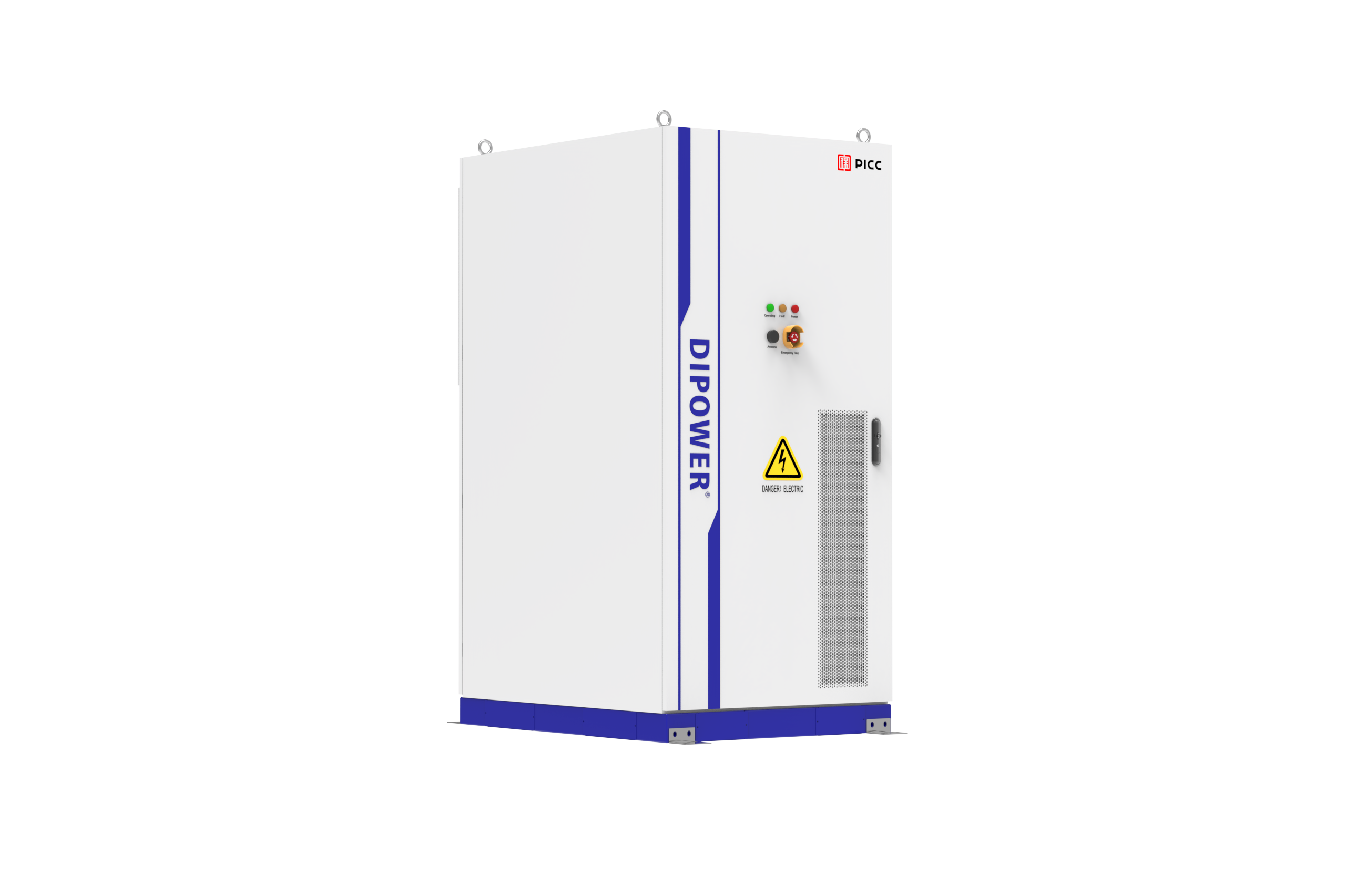

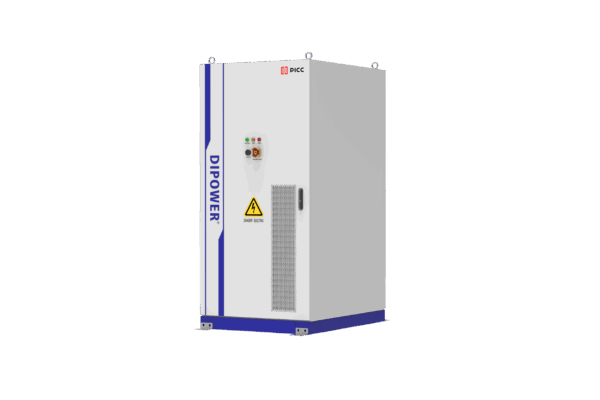

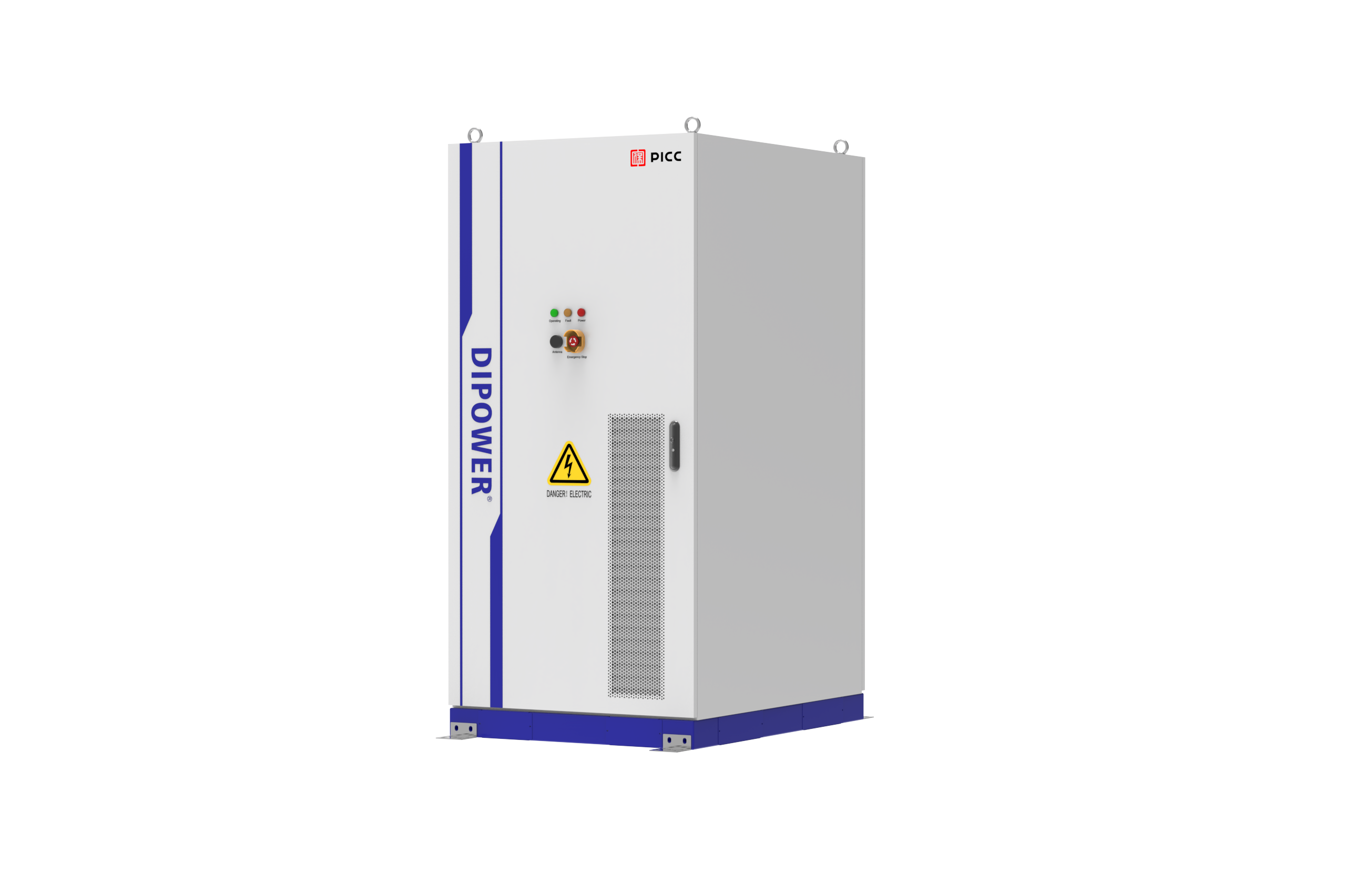

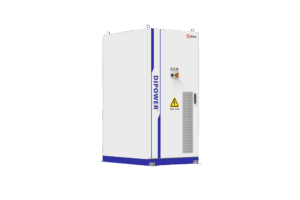

Outdoor Air-cooled PV-ESS Cabinet Specification

Outdoor Air-cooled PV-ESS Cabinet Specification

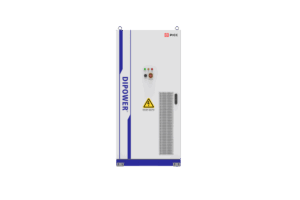

Photovoltaic energy storage cabinet with air cooling optimized for safe, off-grid outdoor use.

  • Energy cycle efficiency: ≧88%
  • Protection class: IP55
  • Corrosion Protection level: C3 default, C4/C5 optional
  • Fire: Aerosols
  • Isolation mode: No isolation (optional transformer)
  • Relative humidity: 0~95% (non-condensing)
  • Ambient temperature: -30℃~55℃(derated above 45℃)
  • Altitude: <3000m (derated over 2000m)
  • BMS Communication: CAN2.0b
  • EMS communication: 4G/CAN/RS485
  • Size (W*D*H): 1000*1300*2100 mm
  • Weight (approx.) : 1.6t
  • Annual decay rate: <3%
  • Warranty: 5 years
